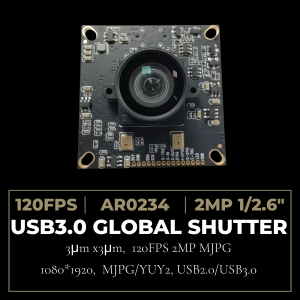

USB3.0 Global Shutter Camera Module 2MP with 1/2.6″AR0234 Color Image Sensor, 1080*1920 at 120fps Board Module for High Speed Capture without trailing Featured Image
  • USB3.0 Global Shutter Camera Module 2MP with 1/2.6″AR0234 Color Image Sensor, 1080*1920 at 120fps Board Module for High Speed Capture without trailing

USB3.0 Global Shutter Camera Module 2MP with 1/2.6″AR0234 Color Image Sensor, 1080*1920 at 120fps Board Module for High Speed Capture without trailing

Short Description:

MODEL: EM_2034C10 This is USB3.0 Global Shutter 2MP Camera Module with Color Sensor 1/2.6″ AR0234, it supports 1080*1920 at 120fps, it can be USB2.0 as well.

Widely used in multiply areas which required clear & Full Color & High Definition/Resolution Image or Video.





Product Detail

FAQ

Product Tags

TECHNICAL SPECIFICATIONS

Model: EM_2034C10
Main Features: USB3.0, Global Shutter, 2MP, 1080*1920 at 120fps, 1/2.6" AR0234,
Color Image, Fixed Focus, 120fps
Main Applications: Live conference camera
Resolution & FPS: USB3.0 MJPG
1920*1200：120fps 1920*1080：120fps 1600*1200：120fps
1280*960：120fps  1280*720：200fps  640*480：200fps  515*515：200fps

USB3.0 YUY2
1920*1200：80fps 1920*1080：80fps 1600*1200：80fps
1280*960：120fps  1280*720：200fps  640*480：200fps  515*515：120fps



USB2.0 MJPG
1920*1200：120fps 1920*1080：120fps 1600*1200：120fps
1280*960：120fps  1280*720：200fps  640*480：200fps  515*515：200fps

USB2.0 YUY2
1920*1200：5fps 1920*1080：5fps 1600*1200：5fps
1280*960：5fps  1280*720：10fps  640*480：30fps  515*515：10fps


Sensor Type: 1/2.6"
Max. Resolution: 1920*1200
Maximum Image Transfer Rate: 120FPS 2M
TV Distortion: <1%
IR Filter: 650±10nm
Connecting Port Type: USB3.0 High Speed
Shutter Type: GLOBAL SHUTTER
Max. Resolution: 1920(H)*1200(V)Pixel
Picture Format: MJPEG/YUV2
Lens Parameter: 2.1mm/2.8mm/2.9mm/3.6mm/3.7mm/6mm/8mm/12mm/No distortion/Fisheye/170 degree/ 180 degree
Cable: Standard 1.5M / Can be customized
Board Size: 38*38mm / can be customized
Dynamic Range: 71.4  dB
Sensor: AR0234
Pixel Size: 3µm x3µm
Assembly Technique: SMT (ROSH)
Optical Distortion: <0.5%
Package: CSP
Support Free Driver: USB Video Class(UVC)
AEC: Support
AEB: Support
AGC: Support
Adjustable Parameters: Brightness/Contrast/Saturation/Hue/Sharpness/Gamma/Exposure white balance/Backlight/contrast（Auto）
Work Temperature: Degrees(-20~70)
Certifications: FCC and CE
Power supply: DC 5V
Operating Request: WinXP/Vista/Win7/Win8/Linux with UVC(above Linux-2.6.26)
Mac-OS X 10.4.8 or later/Android 4.0 or above with UVC

  • Previous:
  • Next:

    • Q: What is the difference between you(Source Factory) and Trade company?
    A: Source factory has its own advance equipments, production line, and workers.
    Generally speaking, trade company do not have, and source factories are the supplier of trade company.
    It would be more cost-saving for you to buy directly from source factory.

    Q: What is your production leadtime?
    A: If our off-the-shelf Camera module can meet your expectations, 1-2 days for sample order.
    If development is needed, 15-20 days for sample order.
    For normal bulk order production run, it is about 20-30 days.

    Q: You are supporting USB camera second-development, Can you specify?
    A: We can offer Linux, Windows, Android SDK, Camera digital microphones etc.

    Q: What information I need to provide to you if I want to customize a Camera module?
    A: 1). Module Type(Monocular/Binocular/Trinocular)?
    2). Pixel：0.3MP/1MP/2MP/5MP/8MP/12MP/16MP
    3). Chip Brand: OV/AR/IMX/GC/SC/HM…
    4). View Angle: 20°-230°
    5). Interface: USB drive free(Standard UVC Protocol)/MIPI/DVP
    6). Board size(32*32cm/38*38cm/others)?
    7). Focus(Auto/manual/fixed)?
    8). If need to fill Light(white light/infrared light)?
    9). Wire length(1.5M/2M/3M/5M/others)?
    10). Other features(Microphone/Wide Dynamic/Global Shutter/Face Recognition)?

    Q: What operating system your cameras support?
    A: WinXP/Vista/Win7/Win8/Raspberry Pi/Linux Ubuntun/Linux with UVC(above Linux-2.6.26)/
    Mac-OS X 10.4.8 or later/Android 4.0 or above with UVC

    Q: Does your camera support OTG?
    A: Well, most of our usb cameras support OTG, except 0.3MP USB3.0 series and 5MP OV5640 USB cameras.

    Q: Could you let me know what softwares your usb camera module support?
    A: Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,
    V4L2 video for Linux, Camerafi, VLC Player

    Q: What is your guarantee police?
    A: 1). Strictly performing quality management system standards in Production, 100% inspection before shipment.
    2). Free replacements for defective modules within one year.
    3). Free repair service for defective modules after 1 year.

    Q: What certifications do you have for your USB Camera?
    A: CE, RoHs, FCC, and Appearance patents.
